Contact Angle Analysis: Sealing Surface of Aluminum Castings

Surface Quality Requirements of Aluminum Castings

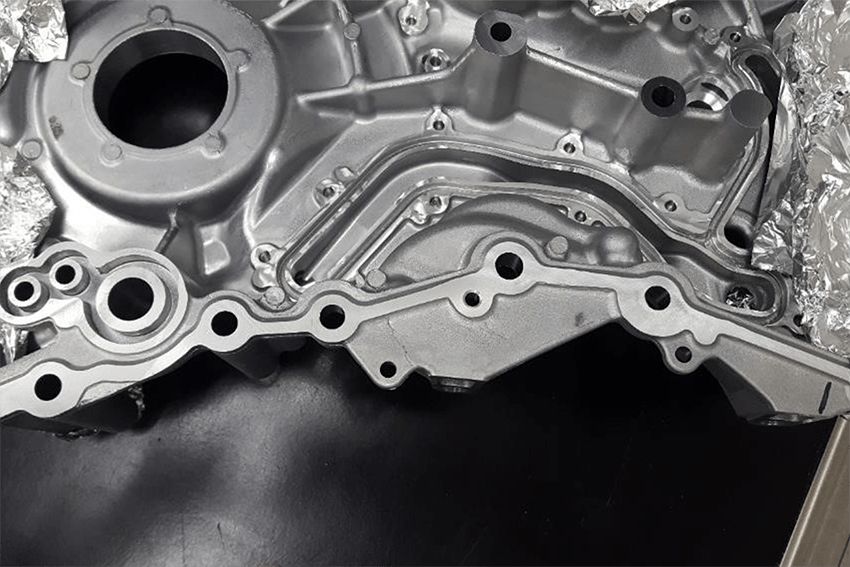

Automotive manufacturers widely utilize aluminum castings as the most successful way to create aluminum parts. However, this process can involve inorganic contaminants on the surface, which interfere with potential bonding, sealing, or coating. Scientists at Brighton Science conducted a surface analysis test for an automotive company by measuring contact angle with the Surface Analyst™ to determine the condition and cleanliness level of their aluminum castings.

The manufacturing process for creating aluminum castings can sometimes entail silicone mold release or conversion coating, which spells disaster for adhesive applications like bonding, coating, and sealing. Because of this, the surface preparation processes of these castings play a pivotal role in the success of high-performance adhesion.

Revolutionize Your Manufacturing with Surface Quality Inspection Technology.

For this analysis, staff at Brighton Science took surface measurements of the client's product in four different quality states and preparation processes: as-received, after multiple isopropanol wipes, after multiple hexane wipes, and after abrasion with sandpaper.

Knowing if the Surface Treatment Process Actually Works

The as-received surface produced inconsistent contact angle variations. The isopropanol and hexane wipe both produced more consistent but high contact angles. The isopropanol produced an average contact angle of 80°, and the hexane produced an average contact angle of 85°. These high contact angles are consistent with silicones or fluorocarbons. Thus, the wipes removed the upper layers of contaminants to reveal a surface consistent with silicones or fluorocarbons often found in conversion coating and mold release.

It wasn't until a treatment with abrasive paper that the contaminants--organic and inorganic--were properly removed to reveal a contact angle of 11°. This demonstrates the elusiveness of contaminants which can be both organic, inorganic, and layered. The wipes removed the organic contaminants on the top, only to reveal the more threatening inorganic contaminants which sometimes occur as a result of machining.

Optimize the power of next-gen connectivity with data & surface intelligence.

Without the Surface Analyst, these contaminants may have remained undisclosed. Surface processes differ in their requirements, and tests like these emphasize how important it is that engineers who are developing new products, working with new materials, creating new processes, or having an active issue in production partner with experts in surface science and use precision tools to monitor surface quality.
