What is Contact Angle?

A contact angle is the angle established between the perimeter of a liquid drop and the surface it rests on.

Because contact angles depend on the interaction of the liquid with the surface, they can be used to calculate thermodynamic properties of a surface such as the surface free energy.

A contact angle (also referred to as a wetting angle) is formed when a drop of liquid is placed on a material surface. The surface tension of the liquid and the attraction of the liquid to the surface causes the drop to form a dome shape. If the drop is small and the surface tension of the liquid is high, it will form a perfect hemisphere. The point where the perimeter of a liquid drop, the liquid-solid interface, and the solid all meet is called the three-phase contact point. The contact angle is defined as the angle between a tangent to the liquid surface and the solid surface at this point. btg-labs-youngs-equation-contact-angle-graphicTheta (Θ) is the contact angle in the illustration above. If the drop of liquid spreads across a surface, the contact angle becomes smaller. If the drop of liquid beads up on the surface (as you might see with a drop of water on a water-resistant article of clothing or a waxed car), the perimeter of the drop retracts, and the contact angle becomes larger.

The contact angles that form depend on several things, including the thermodynamic properties of the liquid and the surface, the way the liquid is brought into contact with the surface, whether there is any time-dependent interaction of the liquid and solid surface, and (for relatively rough surfaces) on the surface topography.

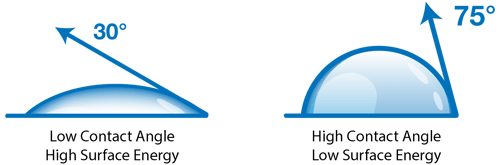

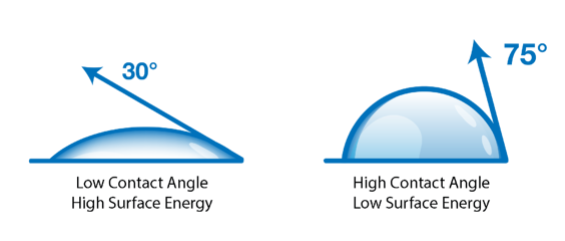

high-low-surface-energy-what-is-a-contact-angle

Download your personal copy of this eBook.

what-is-contact-angle-ebook-cover-shadow

Get your copy of the eBook by completing the form

Important Definitions Relating to Contact Angle

What is Advancing Contact Angle?

The angle formed as a liquid slowly advances over a surface. (Here, ‘slowly’ means slow enough that the liquid viscosity doesn’t affect the contact angle). This is the largest angle that is thermodynamically possible.

What is Receding Contact Angle?

The angle formed as a liquid slowly recedes over a surface. This is the lowest angle that is thermodynamically possible.

What is Contact Angle Hysteresis?

This is the difference between the advancing and receding angles.

What is Equilibrium Contact Angle?

The contact angle formed between a stationary drop of liquid and a surface. The advancing and receding angles are the most important equilibrium contact angles because they represent a thermodynamic equilibrium between the liquid and the surface. However, frequently, a drop is prevented from reaching the advancing or receding angle due to the pinning of its perimeter on a surface feature or a dust particle. In these cases, the established contact angle is an equilibrium angle (the drop isn’t moving), but it doesn’t have the thermodynamic significance of an advancing or receding angle.

What is Static Contact Angle?

A static contact angle is determined from a stationary drop. The static contact angles could be an advancing angle, a receding angle, or any of the multiple metastable angles between the two. Unless it is an advancing or receding angle, it has no thermodynamic significance.

What is Dynamic Contact Angle?

Dynamic contact angle can be:

  • The contact angle of a liquid relative to a moving surface.
  • A contact angle that varied with time due to changes in the surface tension of the liquid, the surface energy of the substrate, or both.

What is a Hydrophobic Surface?

Hydrophobic surfaces are defined as those which produce a high water contact angle, usually ≥ 90°. Surfaces that have water contact angles that are ≥ 150° are called superhydrophobic, or ultra-hydrophobic.

What is a Hydrophilic Surface?

Hydrophilic surfaces produce a low water contact angle.


Contact Angle Measurement & Young’s Equation

It’s conceptually easy to understand how contact angles are related to the interaction of a liquid and a solid surface. First of all, it’s important to remember that all molecules attract all other molecules to one degree or another. Counteracting the attraction between atoms is thermal energy, which causes all molecules to vibrate and push each other apart. Substances that attract each other only weakly (like nitrogen or helium) exist as gases: the thermal vibrations overwhelm the weak attraction. Substances that attract each other more strongly (like water or oil) pull themselves together to form a liquid. If the attractive forces are strong enough, the substance will form a solid, like a metal or paraffin wax.

These attractive forces exist within and between all materials. These forces are why a droplet of water in the air forms a sphere: the net attractive force between all the liquid molecules is directed towards the center of mass which pulls the droplet into a spherical shape.

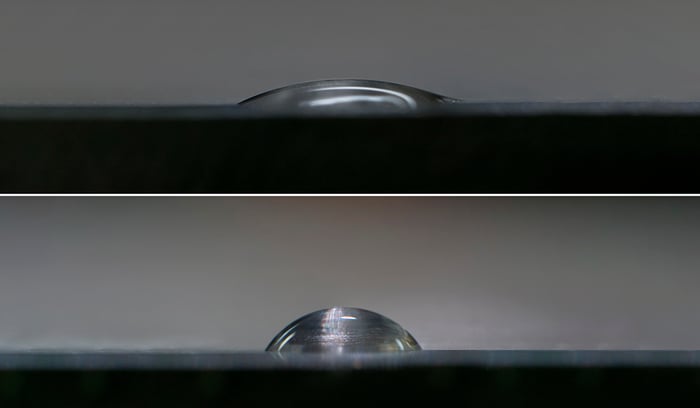

surface-chemistry-high-low-contact-angleWhen a liquid drop contacts a surface, there is now the attraction of the liquid molecules to the molecules in the solid as well as to themselves, which tends to pull the drop into a flattened shape. The final shape that the drop forms depend on the balance of attractive forces of the liquid for itself versus the liquid towards the solid surface. If the liquid attracts itself very strongly compared to its attraction for the surface, the drop will ‘bead up’ and form a high contact angle. If the attraction to the surface is strong compared to the liquid-liquid attractive force, the drop will ‘spread out’ and form a low contact angle.

The relationship of a contact angle to the balance between liquid-liquid attraction and liquid-solid attraction is completely quantitative and is expressed by a simple equation. If a drop sitting on a surface is not moving, the forces acting on it must be balanced. In particular, the forces acting to pull the drop to the left must be balanced by the forces acting to pull the drop to the right. Analyzing the forces using basic physics results in the Young (or Young-Laplace) equation:


young-dupre-1


γs is the surface energy of the solid surface, It’s a measure of how strongly the atoms in the solid attract each other. γl is the surface energy of the liquid (usually referred to as the surface tension) and expresses how strongly the liquid molecules attract each other.

For more information about liquid surface tension, refer to the article, “How to Measure Surface Tension.”

γsl is the energy that’s ‘leftover’ at the interface of the liquid and solid after the molecules come into contact and have interacted with each other.

The Young equation reinforced the idea that contact angles and surface energies (or surface tensions) are closely related to things like adhesion (another way of expressing how strongly one thing is attracted to another). They are also related to things that determine the composition of a surface, like cleanliness and surface treatment. By simply measuring the behavior of a drop of liquid on a solid surface, we can use the correlation of that measurement with the surface energy of the solid to give us control over processes to prepare, treat, and clean surfaces for adhesive bonding and coating, both in the laboratory and in production settings.

Learn more about the difference between surface free energy and surface energy.

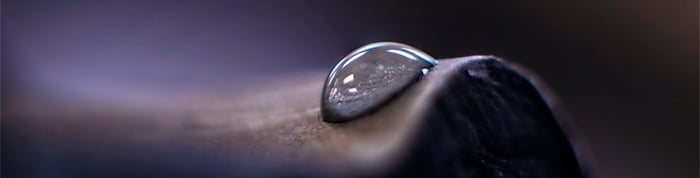

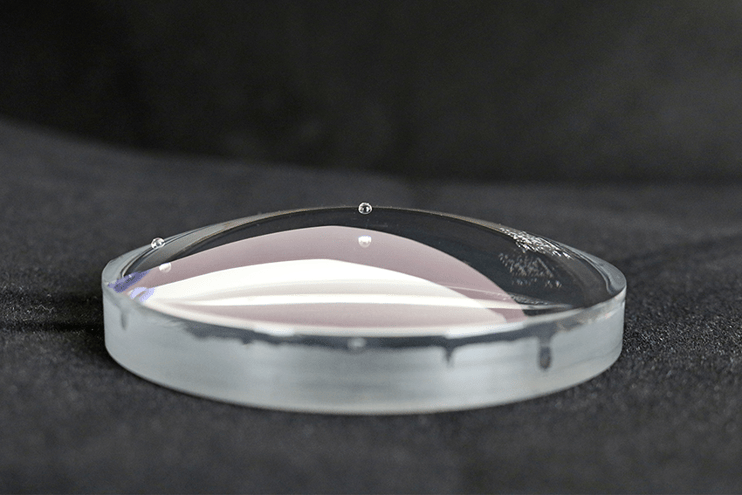

water-contact-angle-curved-surface

Contact Angle and Wetting Properties

Wettability refers to the tendency of a liquid to spread on a surface. Because it’s determined by the intermolecular forces between the surface and the liquid, it’s closely related to surface energies and contact angles and the Young equation. On a thermodynamic basis, wettability is the difference in energy of the system before and after wetting occurs. We express this with the spreading coefficient S:

S= γs – (γsl + γl)

If S>0, the lower energy state of the system is the state where the liquid has wet and spread over the surface, and in this case, wetting and spreading are thermodynamically favored and will be spontaneous.

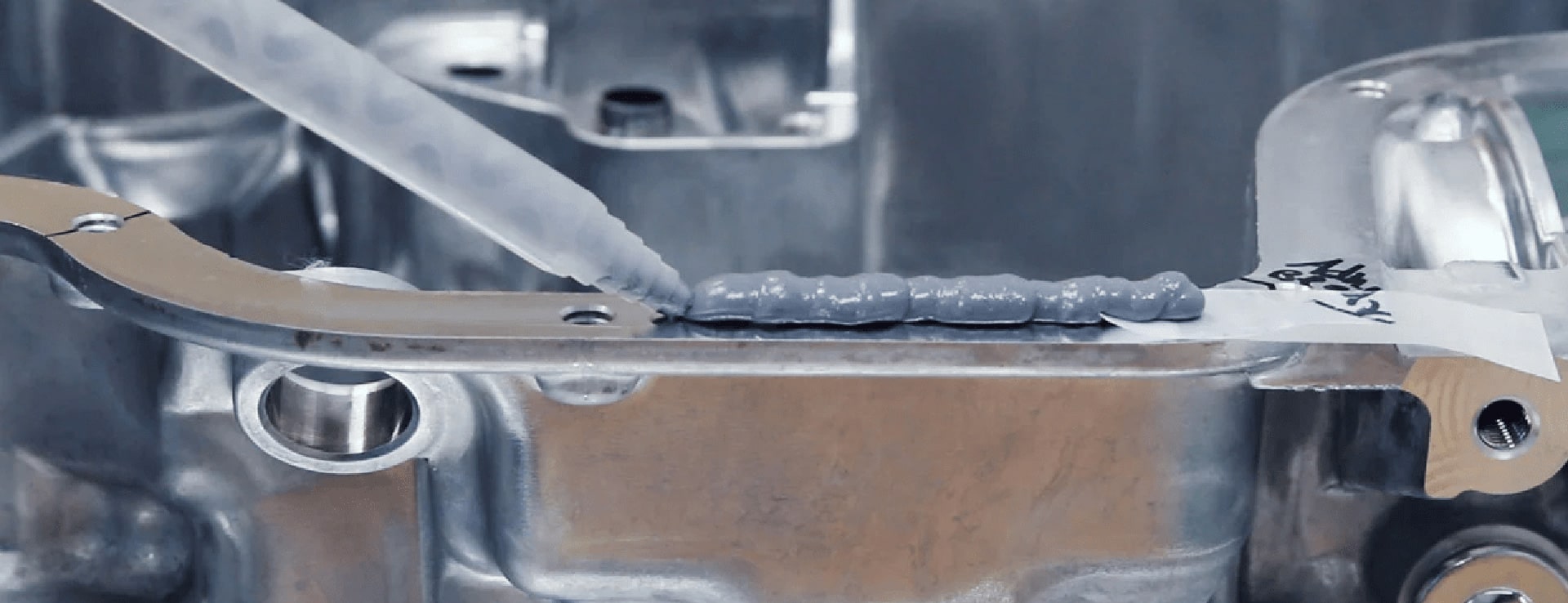

Many manufacturing and assembly processes depend on the wetting and spreading of a liquid on a solid surface: an adhesive or coating being applied to a substrate, molten metal joining materials together during brazing and soldering processes, or blood flowing over a strip for medical diagnostic tests, pesticides spreading on plant leaves—the final performance of the products that undergo these processes depend on liquids successfully wetting-out and spreading uniformly onto a surface.

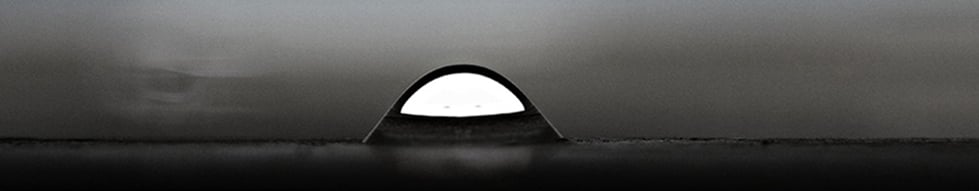

why-knowing-water-contact-angle-is-important-for-successful-adhesive-performance

Why is Contact Angle Measured?

Analyzing drop shape using contact angle is a powerful surface characterization tool for product development teams and manufacturers, allowing them to understand the material surface prior to an adhesion process such as coating, sealing, soldering, adhesive bonding, printing, or painting.

Contact angle measurements can be an excellent validation check for cleaning processes like solvent cleaning, parts washing, ultrasonic cleaning, and more. Contact angle measurements are applicable to almost any material—metals, composites, polymers, ceramics, glass, and more.

Contact angles provide quantitative data about the cleanliness and surface composition at a molecular level.

Sources of contamination that can create a low-energy surface include oils, silicones, greases, or most things that might be in a manufacturing environment and potentially find their way onto a material surface. These contaminants can be detrimental to the adhesion processes and must be detected and controlled to control product quality and consistency.

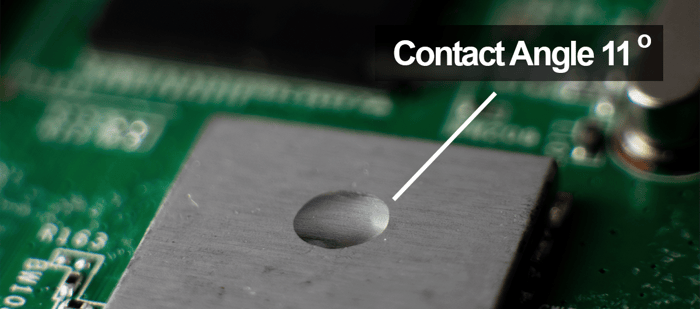

electronic-circuit-board-water-drop-contact-angle-1

Contact Angle Goniometer

The most common approach for contact angle measurements is the sessile drop method, whereby the contact angle is estimated by averaging the contact angle of two diametrically opposed points on a sessile drop. These angles are generally measured either directly by constructing a tangent to the drop at the three-phase point or indirectly by drop shape analysis. Obtaining precision and accuracy with this method requires a flat, smooth, horizontal surface and a uniformly round drop.

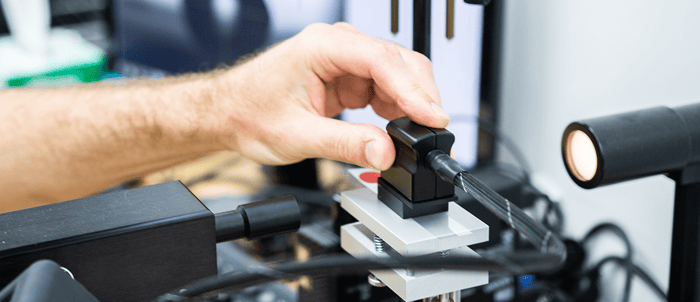

goniometer-surface-analyst-sa-blog-1

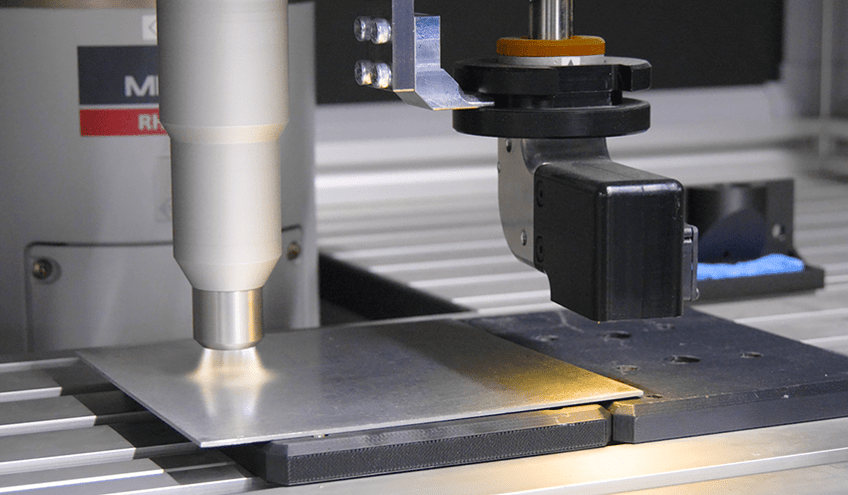

A benchtop contact angle goniometer (sometimes known as an optical tensiometer) is a commonly used laboratory instrument for measuring contact angles. Advanced handheld and automated contact angle meters (like the Surface Analyst family of products) are also usable in a manufacturing operation for routine processes and quality control on actual parts as they proceed through production processes to predict adhesion outcomes.

For product development teams and manufacturers of products that must be bonded, sealed, coated, cleaned, or painted, measuring methods that provide process control parameters are critical. A rapid contact angle meter that quantifies surface wetting properties can be an excellent way to monitor critical adhesion and cleaning processes.


Are Contact Angle Measurements Impacted by Surface Roughness?

Contact angle measurements are affected by surface roughness; the effect depends on the abruptness of the microscopic features. Smoothly undulating surfaces, as well as typical machined or polished finishes, have little or no effect on contact angle measurements. Very rough surfaces, such as those created by sandblasting or other abrasive processes, will show a greater effect. In all cases, as long as one is comparing surfaces of similar roughness, it is the chemical composition of the surface that has the greatest effect on contact angles.

The effect of surface roughness on contact angles is greater when using traditional contact angle measuring tools that utilize a syringe, a pump, or a ‘liquid needle’ to deposit the liquid. Ballistic Drop Deposition™, where the drop is printed on the surface from a pulsed stream of microdroplets, provides a significant advantage due to the kinetic energy imparted to the liquid drop during the deposition process. The individual droplet impacts cause the drop perimeter to advance over any surface asperities. The drop then recedes slightly in the inter-impact period due to liquid surface tension. This repeated advancing and receding of the drop perimeter during growth greatly reduces the tendency for the drop perimeter to be pinned by surface roughness. This creates particularly round drops whose contact angles can be measured much more accurately. Because of this, contact angles measured using the Surface Analyst are much less sensitive to surface roughness and provide accurate, reliable contact angle measurements on almost any surface.

What’s more important than surface roughness is surface chemistry and contamination.

To read more about surface roughness and contact angle measurements, read this article, “Is Roughness as Important as Surface Cleanliness to Adhesion?

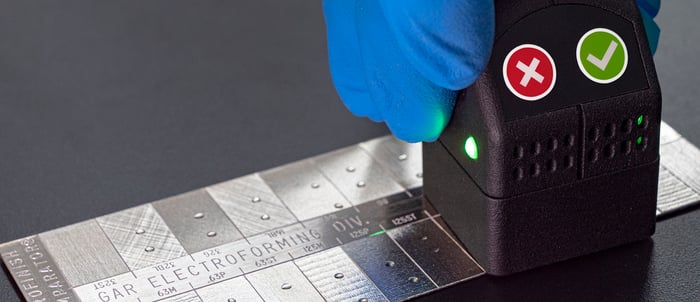

surface-analyst-5001-measuring-roughness-tool

Variability in Contact Angle Measurements

One source of contact angle variability is the technique used to place the drop of liquid on the surface. As mentioned above, there is not just one equilibrium contact angle for a given liquid/solid pair, but rather a range of stable contact angles that can be established. Gentle placement of a liquid drop tends to establish an advancing contact angle; less delicate transfer of the liquid to the surface establishes a lower angle that is closer to a receding contact angle. The magnitude of the variability from this source depends on the amount of contact angle hysteresis and can vary from a degree up to even 15° or 20°. Reproducibility of the deposition process is a source of variability that is critical to control. Automated liquid deposition is an important feature of contact angle measurement equipment to minimize variability from this source.

The advancing contact angle is generally thought to be more sensitive to low surface energy areas of a surface, while the receding contact angle is more sensitive to high surface energy areas. The receding contact angle is established by ‘peeling off’ the liquid from the surface and is actually a kind of adhesion test. It can be thought of as a measure of liquid-solid adhesion.

To take a deep dive into the best practices of improving surface quality & process control, read this article, “Leveraging the Variability in Contact Angle Measurements to Improve Surface Quality & Process Control.”

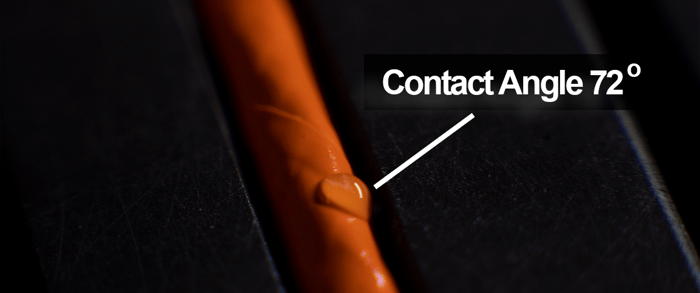

orange-wire-curved-surface-water-drop-contact-angle-72-degrees-1

Download your personal copy of this eBook.

what-is-contact-angle-ebook-cover-shadow

Get your copy of the eBook by completing the form

Contact Angle Measurements Enable Organizations to Gain a Competitive Edge

Manufacturers are leveraging Surface Intelligence data provided by contact angle measurements to Solve, Prevent & Control manufacturing, product development & supply chain challenges.

The Surface Analyst technology uses an innovative approach to depositing the droplet of water and measuring contact angle that overcomes the variability that is often found in manufacturing environments.

Revolutionize Your Manufacturing with Surface Quality Inspection Technology.

By constructing a drop of highly purified water in this unique manner and measuring the drop top-down, the Surface Analyst is able to take measurements on a variety of surface angles—vertical, horizontal, convex and concave—as well as different surface finishes--smooth, textured and rough.

To learn more about the best ways to utilize water contact angle measurements in your process, download our eBook: Predictable Adhesion in Manufacturing Through Process Verification
